Question 1 of 10
1. Question
The electronic symbol shown below represents a(n)
CorrectIncorrect -
Question 2 of 10
2. Question

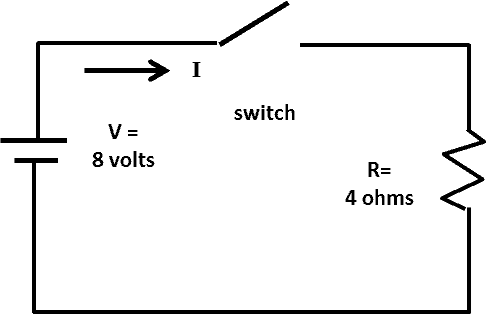

What is the voltage across and current through the resistor R when the switch is open?
CorrectIncorrect -
Question 3 of 10
3. Question

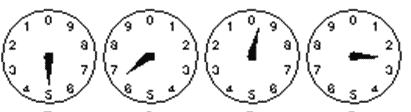

What is the reading on the kilowatt-hour meter shown below
CorrectIncorrect -
Question 4 of 10
4. Question
Resistance is measured in?
CorrectIncorrect -
Question 5 of 10
5. Question
What is the total resistance when two 10 ohm resistors are connected in series?
CorrectIncorrect -
Question 6 of 10
6. Question
Electric power can be measured by what type of instrument?
CorrectIncorrect -
Question 7 of 10
7. Question
Using a fuse rated higher than the required current rating of a circuit can
CorrectIncorrect -
Question 8 of 10
8. Question
A circuit contains three parallel resistors. Each resistor has 3 amps flowing through them. What is the total current flowing through the circuit?
CorrectIncorrect -
Question 9 of 10
9. Question
A typical home outlet has how much voltage?
CorrectIncorrect -
Question 10 of 10
10. Question
The measurement “mil” refers to
CorrectIncorrect
